Brachy Prostate Phantom without Cathete

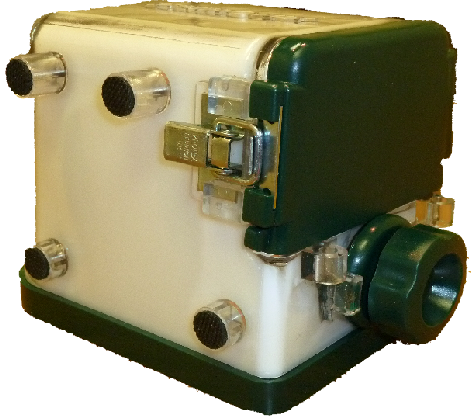

Yezitronix' radioactive seeds implantation Model S-B-2.3 Ultrasound Prostate Phantom is a multiple usage phantom developed for simulation and training for brachytherapy procedures.

Its ingenious and versatile design makes the S-B-2.3 model a useful tool for simulation and training of different ultrasound rectal probes and surgical elements involved in prostate medical procedures.

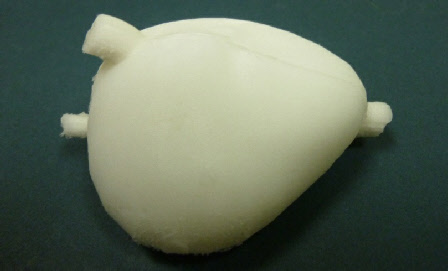

The prostate phantom construct mimics the exact 3D shape and size of:

40cc Prostate
Urethra
Seminal vesicle
Ejaculatory duct
Rectal wall
Partial bladder
Fat muscle tissues
Perineal Tissue
Numerous lesions located inside the prostate.

Suitable for:

OEMs. medical devices simulation, robotic system calibration, hospitals, clinics, med schools training and demonstrations.

Prostate phantom - Exact Ultrasound ecogenicity as seen by surgeons in the Operating Room

Specifications

Multi-layer material : each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties.

There are 4 embedded lesions in the prostate to help simulate biopsies or brachytherapies procedures. Multiple usage of the same packaged phantom over an extended period of time.

Enclosure :

16(L) x 11.5(W) x 12(H), Material . PVC, PC and metal latches. Front upper window 6.5(W) x 5.5 (H), Probe input diameter . 3.5 (all units in cm)

Available Models :

Bi-plane (Side Fire) : S-BP-2.3
Brachytherapy mode : S-B-2.3
End fire mode : S-EF-2.3
Multi-modality mode (Ultrasound, CT, MRI) : S-MM-2.3
Without lesions : S-WL-2.3
Coloured components (Bladder, Urethra, Seminal Vesicles, Ejaculatory Duct) for Biopsy training : S-CC-2.3
With hollow Urethra for catheter insertion : S-HU-2.3
Custom design according to customer specifications : S-CD-2.3
